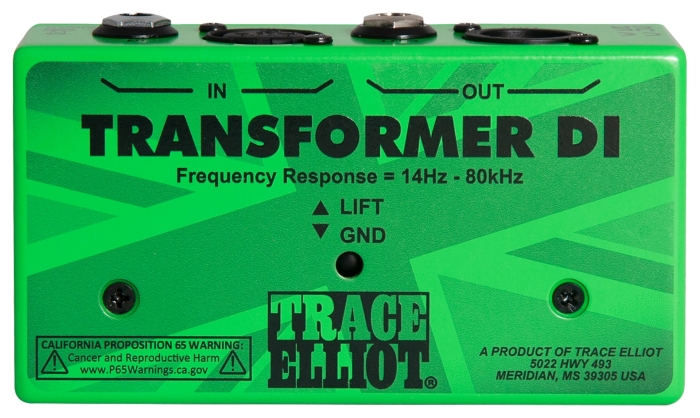

Trace Elliot Transformer DI Pedal

Overview

Features

Audiophile quality 1:1 line level audio transformer interface
Transforms balanced to unbalanced line signals or unbalanced to balanced line signals
Perfectly balanced proprietary transformer design with ultra-high permeability Ni-Fe core
Frequency Response of 20 Hz to 20 kHz (-0.5 dB) with no more than +/-1.0 dB of variation from 14 Hz to 80 kHz
Total Harmonic Distortion is <0.015% from 70 Hz to 80 kHz
Total Harmonic Distortion is 0.5% at 20 Hz
Electrical isolation of >500V between secondary and primary winding or windings
Insertion loss <1.0 dB
Input levels up to +22.2 dBu are acceptable
Ground lift with RF rejection circuitry
Excellent for low to mid impedance signal sources.Classic full range overdrive for bass guitar applications
