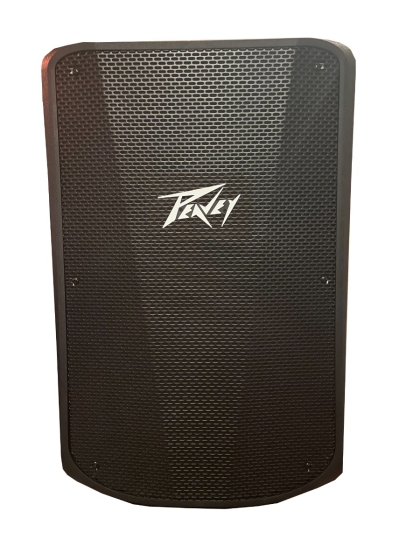

Peavey PBK 15BT Powered Loudspeaker

PVPBK15BT


Peavey PBK 15BT Powered Loudspeaker
Peavey PBK 15BT Powered Loudspeaker Peavey PBK 15BT Powered Loudspeaker

Overview

The Peavey® PBK™15BT is a two-way sound reinforcement system based on a heavy-duty 15” woofer and a horn loaded dynamic compression driver. Its contemporary appearance coupled with exceptional performance offers a highly desirable combination.

The light yet durable injection-molded plastic enclosure with molded-in stand mount cup eases portable use for live music or PA sound. The trapezoidal cabinet has two handles for ease of portability, and an angled section on either side to allow use as a floor monitor.

The heavy-duty 15” woofer has a warm punchy sound for plenty of bass. The compression driver tweeter is coupled to a waveguide, with smooth and even response, and good high frequency dispersion.

Advanced Digital Signal Processing (A.D.S.P.) provides the crossover function, driver limiting, as well as the driver EQ to enable the speaker system to provide an accurate and neutral sound for any type of music. The DSP processing uses a 48 kHz sampling rate at 24 bits for the input/output sections for maximum fidelity. Three presets have been implemented in the speaker system’s DSP computing core, these are accessible via a slide selector switch. A built-in dynamic bass boost function provides the maximum amount of bass in a small package.

The PBK 15BT bi-amplified power amplifier provides a total of 470 Watts peak available dynamic system power.

Bluetooth® streaming and device pairing operation is also supported.

Features

  • Two-way bi-amplified analog amp powered speaker system
  • 15" heavy-duty woofer
  • Horn loaded compression driver, with 1“ diaphragm
  • Total of 470 Watts peak dynamic power
  • Bluetooth® streaming and pairing are supported
  • DSP processing is 56 bit double-precision
  • DSP I/O is at 48 kHz and 24 bits
  • Dynamic bass boost function
  • Generous heat-sink area avoids the need for a cooling fan
  • Three channel mixer
  • Channels 1 and 2 feature balanced XLR & 1/4” TRS Jack inputs
  • Channel 3 features Bluetooth®, 3.5mm Jack, and RCA inputs
  • Thru/Mix output is via a male XLR jack
  • Three Factory Preset EQ settings for the DSP crossover system
  • Tone controls for additional tonal shaping
  • Rugged plastic injection-molded trapezoidal enclosure
  • Cabinet has dual rear corner angled sides for floor monitor use
  • Full-coverage perforated steel grille, with powder coat finish
  • Pole mount molded-in for 1 3/8" diameter poles

Weight & Dims:

Dimensions (HxWxD)

  • 19” (690 mm) x 17.44” (443 mm) x 13.38” (340 mm)

Weight

  • 5 lbs (16.6 kg)

Specification

Commodity Code 8518900000
Manufacturer Peavey
Country of Origin China
Barcode 0014367675900

Packaged Weight & Dimensions

Height (CM) 39.4
Width (CM) 52.6
Depth (CM) 75
Weight (Kg) 18
