Overview

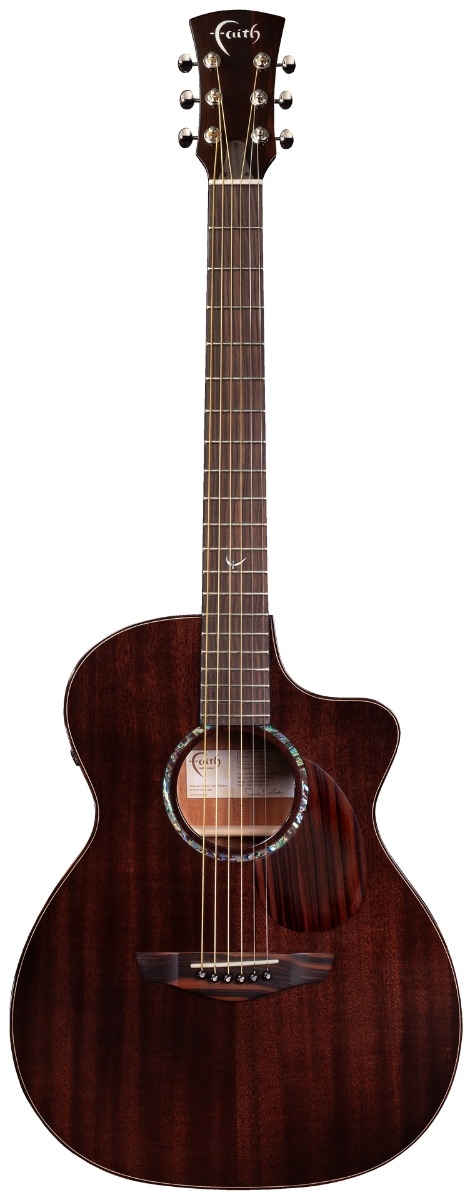

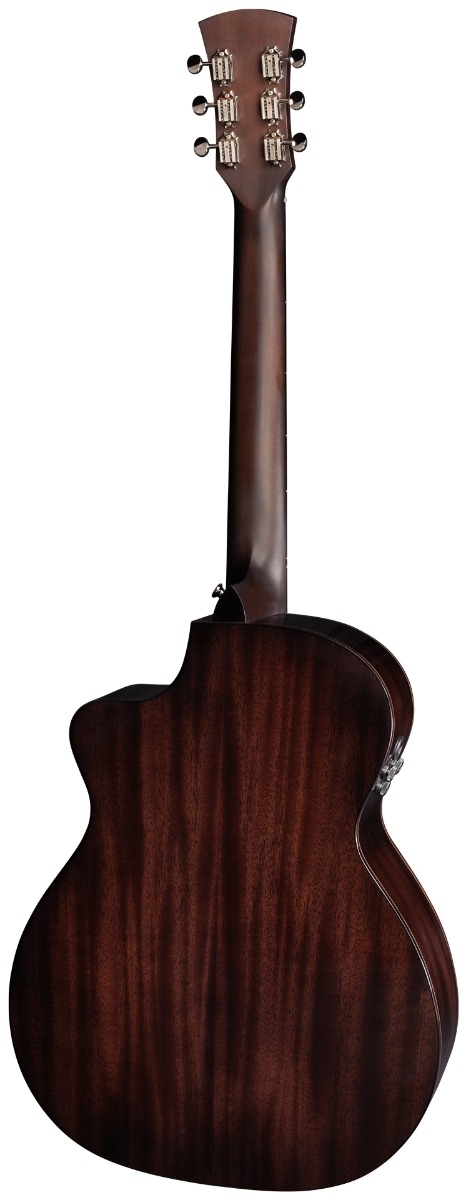

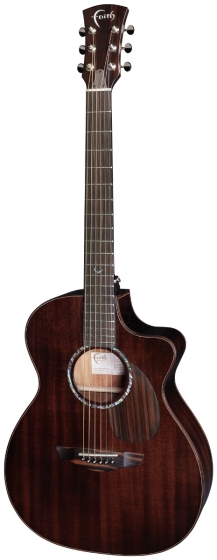

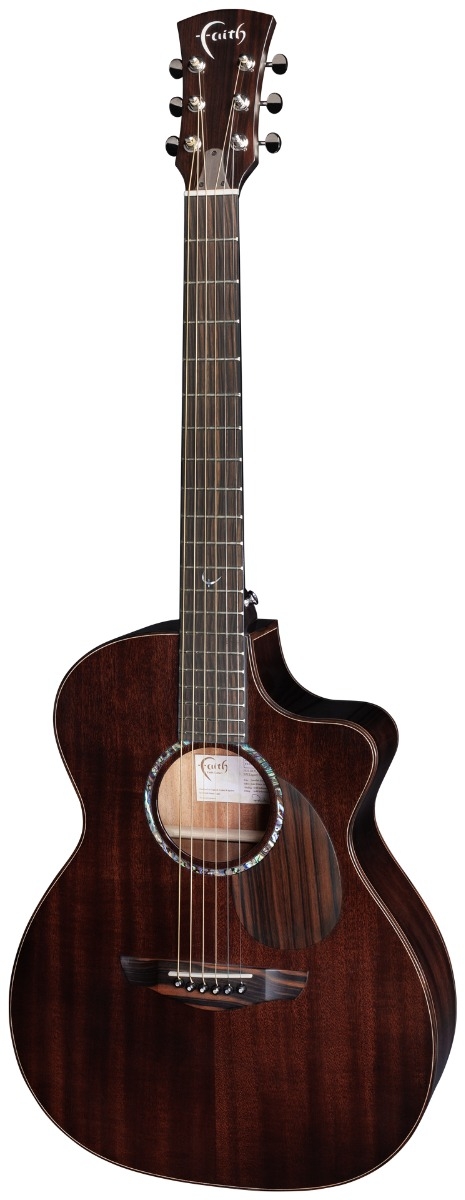

Focusing solely on Patrick James Eggle’s historic acoustic body shapes, our new PJE Legacy Series guitars set a new bar for professional excellence. This Faith PJE Legacy FG5 model is only the second to be granted access to Patrick James Eggle’s sought after ‘Earth’ body shape.
This OM Cutaway design is built from Solid African Mahogany all over, but with the top having gone thru a laborious roasting or ‘torrefaction’ process. The Mahogany is air dried before being roasted in a kiln with precise controls over atmospheric and oxygen levels to reduce its moisture content. Then as the wood cools, precise amounts of moisture are re-introduced to the wood. The resulting timber is more stable – always good when used as a topwood - and aurally, it produces a rich, mellow tone with a mature voicing which would take perhaps 20 years of waiting to achieve under normal circumstances. The Legacy ‘Dark Roast’s’ physical colouration is reflected in its tonal palette too with a luxuriously smooth low-end, pronounced, well-balanced mids, and a treble range with remarkable headroom.
The guitar is then finished with Ebony fittings and a beautifully grained Ebony pickguard. They also feature solid Figured Ebony fingerboards, bindings, bridges, and bone nuts, saddles and bridge pins.
Based on Patrick James Eggle’s ‘Linville’ model, the Earth is a true Orchestra Model (OM) shape and is the newest addition to the Faith family. Although sharing many geometric characteristics with our highly acclaimed Venus shape, the Earth has its own set of distinguishing features that make for a unique tonal palette, plus it is truly unique, having been drawn by Patrick’s own hand.
In true OM fashion, its 15” lower bout is flattened at the base, and at 4.45” deep, its shallow body makes for a comfortable mid-sized guitar.
These Faith Legacy models are fitted with Fishman's latest FLEX-BLEND preamp system. Featuring an undersaddle piezo pickup and condensor microphone, greater sound balance is achieved, plus percussive techniques can be fully explored. The preamp features 3 ultra-discreet knobs, a built in tuner, EQ contour control, blend control (Piezo/Mic), and phase control (push to activate). The battery is stored in a special bag located inside the guitar fixed to the neck black, and the jack output is combined with the strap button at the base.
Visit www.faithguitars.com for more info
Guitar Dimensions
Upper Bout: 283mm
Lower Bout: 383mm
Depth at Neck: 93mm
Depth at Base: 112mm
Body Length: 487mm
Soundhole Diameter: 100mm
Scale Length: 650mm
Fingerboard Radius: 16"
Just One Tree
Planting trees for every Faith Guitar sold
Faith Guitars are delighted to partner with JUST ONE Tree, pledging to plant trees every time a new Faith guitar is sold, anywhere around the world.
JUST ONE Tree is a not-for-profit organisation based in the UK who plant trees in areas severely affected by deforestation to maximise the effect on reducing global warming. In the process they help to provide agricultural education and sustainable incomes to local communities.
Specification
Commodity Code | 9202903000 |
---|---|
Manufacturer | Faith Guitars |
Country of Origin | Indonesia |
Barcode | 5036678115642 |
Back / Side Wood | Solid African Khaya Mahogany |
Finish Type | Gloss |
Guitar Style | Acoustic-Electro |
Right / Left Handed | Righthanded |
Top Wood | Solid Torrefied African Khaya Mahogany |
Packaged Weight & Dimensions
Height (CM) | 113 |
---|---|
Width (CM) | 56 |
Depth (CM) | 18.5 |
Weight (Kg) | 7.5 |
